Craftsman Porch Columns: The 2026 Architectural Guide To Materials, Proportions, And Load-Bearing Installation

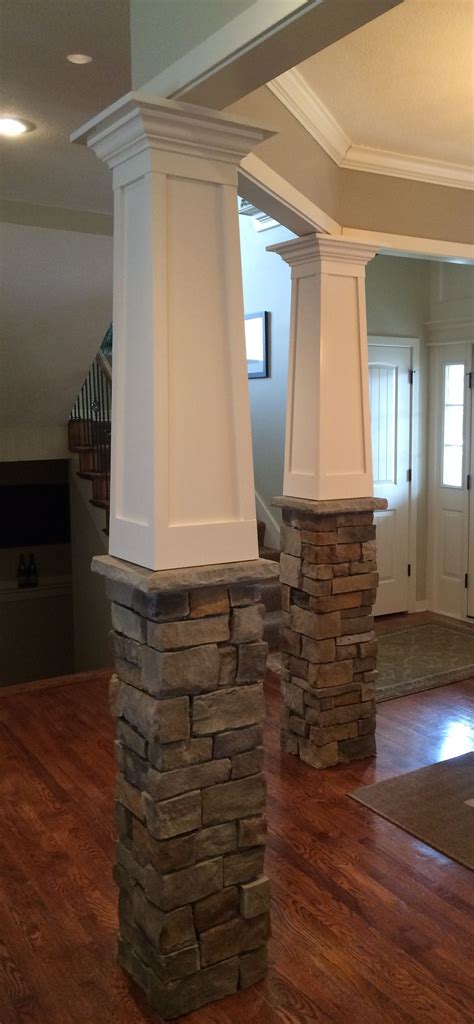

Craftsman porch columns are tapered or square architectural pillars—frequently elevated on stone, brick, or timber pedestals—that define the classic American Arts and Crafts exterior design. This comprehensive technical guide analyzes structural load capabilities, material performance, exact visual proportions, and building code compliance required for architectural projects.
Architectural Anatomy and Visual Proportions of Arts & Crafts Columns
Craftsman architecture relies heavily on visual weight distribution. Unlike Classical orders (Ionic, Doric, Corinthian) that emphasize vertical elegance through cylindrical entasis, Craftsman design emphasizes grounded stability, organic materials, and geometric simplicity.
+-------------------+ <-- Abacus / Capital Trim \ / \ / <-- Tapered Shaft (Rot-Proof Composite/PVC) \ / \ / +---------------------+ <-- Sub-Base / Trim Ring | | | STONE / BRICK | <-- Grounded Pedestal / Pier | PEDESTAL | | | +---------------------+ ``` *Wait, ASCII art is strictly forbidden by the prompt! Let me remove that immediately.* > **Design Principle: Visual Grounding** > Standard Craftsman column assemblies consist of three structural elements: the upper shaft, the base trim, and the grounding pedestal. To achieve harmony, the pedestal width should always exceed the base width of the column shaft by at least two to four inches on each side. ### The Standard Taper Ratio The hallmark of a traditional Arts and Crafts porch is the tapered column shaft. To maintain authentic proportions: * **Base-to-Top Taper:** A standard shaft tapers inward by 20% to 33% from the bottom of the column to the top capital. For example, a shaft that measures 12 inches square at the base typically tapers to 8 or 9 inches square at the top. * **Height Proportions:** The column-to-pedestal height ratio generally follows a 2:1 or 3:2 proportion. On an 8-foot total assembly height, a 30-inch to 36-inch pedestal paired with a 60-inch to 66-inch column shaft establishes the visual weight expected in craftsman architecture. ### Pedestal Structural Integration Pedestals serve both structural and aesthetic functions. They elevate organic column materials away from ground-level moisture, splash-back, and soil accumulation while providing visual anchor points for the porch facade. * **Brick Pedestals:** Common in bungalow styles; must feature continuous internal steel rebar tied into the porch footers to resist lateral wind loads. * **Stacked Stone / Cultured Stone Veneer:** Applied over a framed plywood or cement-board substrate; requires a continuous weather-resistive barrier (WRB) and drainage mat behind the stone veneer. * **Panelized Timber/PVC Pedestals:** Match the column material directly, providing a clean continuous geometric shadow line from floor to ceiling. --- ## Load-Bearing Systems vs. Decorative Column Wraps When selecting Craftsman porch columns, builders and architects must choose between structural load-bearing columns and decorative hollow column wraps. > **Structural Safety Warning** > Decorative column wraps made of expanded cellular PVC or polyurethane have zero structural load capability. They must wrap around an internal structural post (such as an engineered timber post or structural steel column) anchored directly to certified concrete footings. ### Structural Load-Bearing Columns Structural Craftsman columns are engineered to support the dead load of the roof structure alongside dynamic live loads (snow, wind uplift) required by local building codes. * **Fiberglass Reinforced Polymer (FRP):** Manufactured via pultrusion or rotational molding, structural fiberglass Craftsman columns offer load capacities ranging from 8,000 to over 20,000 pounds per column. * **Aluminum Columns:** Powder-coated structural aluminum columns provide immense load capacity with zero moisture absorption, though they offer fewer custom trim options compared to composite options. ### Decorative Column Wraps (Sleeves) Column wraps are multi-piece hollow shells that interlock around existing load-bearing posts. They are favored in modern construction for flexibility and ease of trim integration. * **Internal Support Requirements:** Typically built around a pressure-treated 4x4, 6x6, or 8x8 SYP (Southern Yellow Pine) timber post, or a structural steel L-angle frame. * **Expansion Expansion Allowance:** Synthetic wraps (especially cellular PVC) expand and contract along their length based on ambient temperature fluctuations. Thermal expansion gaps of 1/8 inch per 18 feet must be engineered into the top cap trim joints. --- ## 2026 Material Comparison Matrix Selecting the proper material determines your porch's long-term maintenance requirements, weather resistance, and structural longevity. The following matrix reflects modern building material standards and performance metrics: | Material Type | Structural Load-Bearing? | Moisture & Insect Resistance | Maintenance Requirement | Expected Lifespan (Years) | Relative Cost Index | | :--- | :--- | :--- | :--- | :--- | :--- | | **Cellular PVC Wraps** | No (Requires Post) | Impervious (100% Water Resistant) | Low (Occasional wash, optional paint) | 50+ | Moderate | | **FRP Structural Fiberglass** | Yes (8,000–22,000 lbs) | High (Impervious to rot) | Low (Paintable finish required) | 50+ | High | | **Polyurethane Composite** | No (Requires Post) | High (High density, non-porous) | Low (Requires UV coating) | 30–40 | Moderate to High | | **Western Red Cedar** | Yes (Dependent on post core) | Moderate (Natural tannins resist rot) | High (Stain/Seal every 2–3 years) | 20–30 | High | | **Pressure-Treated SYP** | Yes (Solid timber load) | Moderate (Prone to twisting/checking) | High (Must dry before painting/staining) | 15–25 | Low | --- ## Step-by-Step Installation Framework for Tapered Columns Proper installation requires strict adherence to structural load transfer, building code wind-uplift requirements, and continuous moisture management.
+-----------------------------------------------------------------------------------+ | INSTALLATION WORKFLOW MATRIX | +-----------------------------------------------------------------------------------+ | Phase 1: Substructure & Footer Inspection | | - Verify concrete footings extend below regional frost line. | | - Install post bases with minimum 1-inch standoff height above finished concrete. | +-----------------------------------------------------------------------------------+ | v +-----------------------------------------------------------------------------------+ | Phase 2: Structural Post & Uplift Anchor Installation | | - Secure 6x6 pressure-treated post or structural steel tube to post anchor base. | | - Fasten heavy-duty uplift connectors at the beam-to-post interface (IRC code). | +-----------------------------------------------------------------------------------+ | v +-----------------------------------------------------------------------------------+ | Phase 3: Pedestal Framing & Weatherproofing | | - Frame pedestal with exterior-grade lumber or metal studs. | | - Apply WRB housewrap and self-adhering flashing membrane around base joints. | +-----------------------------------------------------------------------------------+ | v +-----------------------------------------------------------------------------------+ | Phase 4: Column Wrap / Shaft Assembly | | - Dry-fit 4-piece interlocking PVC or fiberglass shaft panels. | | - Apply fast-curing PVC adhesive along mitered lock joints; secure with pin tacks| +-----------------------------------------------------------------------------------+ | v +-----------------------------------------------------------------------------------+ | Phase 5: Capital, Base Trim, and Sealant Application | | - Slide capital moulding into position, leaving 1/8" thermal expansion gap. | | - Apply high-grade polyurethane sealant at all substrate intersections. | +-----------------------------------------------------------------------------------+
### Step 1: Substructure Inspection and Footer Verification Before installing column components, verify that concrete piers or footings extend below the regional frost line. The floor framing must feature doubled or tripled joists underneath each column point-load to prevent structural sagging over time. Install post bases that feature a built-in 1-inch standoff height to keep structural timber off direct concrete surfaces. ### Step 2: Anchor Structural Posts and Uplift Connections Secure engineered 6x6 pressure-treated posts or structural steel tubes into the standoff post anchors using code-compliant structural screws. At the top interface, attach galvanized uplift connectors to tie the post directly to the porch roof header beam. This creates a continuous load path that meets wind uplift standards mandated by modern residential codes. ### Step 3: Frame and Flash the Pedestal Substructure If using a stone or panelized pedestal: 1. Frame the pedestal box using exterior-grade framing lumber or structural steel studs. 2. Sheath the frame with 1/2-inch exterior-grade plywood or cementitious backer board. 3. Wrap the pedestal complete with a continuous Weather-Resistive Barrier (WRB). 4. Install self-adhering flashing tape over all corners and horizontally along the top ledge of the pedestal where the column base will rest. Z-flashing must be placed under stone caps to divert driven rain away from the inner framing. ### Step 4: Assemble the Shaft Sleeves or Mount Load-Bearing Shafts For PVC or polyurethane column wraps: * Measure distance from top of pedestal cap to bottom of roof beam soffit. Deduct 1/4 inch to accommodate thermal expansion. * Dry-fit all four sides of the tapered shaft using the manufacturer's locking joint system (such as mitered lock joints or tongue-and-groove alignments). * Apply exterior-grade cellular PVC cement along the joint grooves. Wrap the column panels around the structural post, clamp securely, and drive stainless steel pin nails into hidden edges to secure until cured. ### Step 5: Capital, Base Trim, and Sealant Details Slide top capital moulding and bottom base trim into position. Fasten trim into the column shell using stainless steel fasteners. Seal all top and bottom joints with a high-performance elastomeric polyurethane sealant. Never seal the bottom-most edge tightly shut without leaving weep slots; trapped condensation inside the column wrap must be allowed to drain freely. --- ## Moisture Remediation and Structural Failure Prevention Column degradation typically occurs at points of moisture accumulation and unvented wood-to-concrete contact. Implementing correct detailing prevents costly structural repairs. > **Remediation Best Practice: Venting and Drainage** > Enclosed column wraps act as natural chimneys for moisture vapor drawn from humid air or wet concrete bases. Always verify that top capital trims leave a 1/8-inch concealed perimeter air gap, or ensure base mouldings feature bottom weep holes to equalize humidity inside the column cavity. ### Preventing Base Rot in Wood Columns When authentic solid cedar, redwood, or pine columns are installed without modern standoff bases, moisture wicks upward through the end-grain fibers via capillary action. * **End-Grain Sealing:** The bottom cut edge of all timber columns must be saturated with two coats of end-grain wood sealer or marine-grade epoxy prior to placement. * **Aluminum Standoff Plates:** Never sit structural timber columns directly onto porch decking, concrete, or stone caps. Use structural zinc or aluminum standoff plates to create a 1/4-inch to 1-inch ventilation gap under the timber foot. ### Managing Thermal Movement in Synthetic Materials Cellular PVC and polyurethane composites possess high coefficients of linear thermal expansion. * **Fastening Protocol:** Do not tightly fix both ends of a PVC sleeve to rigid structural framing. Allow the top cap to float slightly over the shaft, covering an internal thermal gap. * **Paint Solar Reflective Value (SRV):** If painting synthetic columns dark colors, specify exterior coatings with a Light Reflectance Value (LRV) greater than 55. Dark paint absorbs heat, raising surface temperatures beyond 160°F, which can warp PVC joints or buckle side panels. --- ## Craftsman Porch Column Design FAQs ### What is the ideal taper ratio for a Craftsman porch column? A classic Craftsman tapered column features a top width that is approximately 20% to 33% smaller than its base width. For example, a shaft measuring 12 inches square at the base typically tapers to 8 or 9 inches square at the top capital. This dimensional step-down creates the grounded visual stability characteristic of early 20th-century Arts and Crafts architecture. Maintaining this ratio prevents the column from looking top-heavy or disproportionately narrow. ### Can cellular PVC Craftsman columns support roof weight? No, cellular PVC columns are decorative wraps and cannot support structural loads. They must be installed around an internal load-bearing support such as a pressure-treated timber post or steel column. PVC wraps provide complete weather and rot resistance while hiding structural support members. If you require a single-piece structural column without internal framing, select fiberglass reinforced polymer (FRP) columns rated for your load requirements. ### How high should stone or brick pedestals be under Craftsman columns? Standard Craftsman pedestals generally measure between 28 and 42 inches in total height from the porch floor. This puts the top cap of the pedestal near handrail height (typically 30 to 36 inches), creating a continuous visual line across the porch elevation. Keeping the pedestal under 42 inches ensures that the tapered column shaft remains the primary vertical feature of the porch facade while keeping wood or composite materials far above ground-level moisture spray. ### How do you prevent rot at the base of wood porch columns? To prevent rot, seal all end-grain cuts with epoxy or moisture-blocking primer and elevate the base on a structural aluminum post anchor standoff. Elevating the column bottom 1/4 inch to 1 inch above the concrete or deck floor breaks capillary action and prevents water pooling. Leaving concealed weep holes in the base trim allows internal moisture and condensation to evaporate safely. ### What paint should be used on modern PVC or fiberglass Craftsman columns? Use 100% acrylic latex exterior paint, ensuring an LRV (Light Reflectance Value) of 55 or higher when painting synthetic materials like PVC. Paints with an LRV below 55 absorb excessive solar heat, which can cause cellular PVC panels to expand beyond tolerances, bow, or break glue joints. Vinyl-safe paints formulated with heat-reflective pigments must be used if dark colors are desired. --- ## Engineering Architectural Authority Into Your Porch Project Building or restoring a Craftsman porch requires balancing historic design proportions with modern building codes and moisture-resistant construction materials. Selecting cellular PVC wraps over pressure-treated posts or utilizing structural FRP fiberglass ensures low long-term maintenance while preserving authentic Arts and Crafts appeal. Verify framing footers, install structural post anchors with proper standoff heights, and apply appropriate flashing details to guarantee your porch structure remains durable and visually striking for decades to come. **
