Kenmore Elite Washing Machines: Technical Specifications, Fault Diagnostics, And OEM Maintenance Guide (2026)

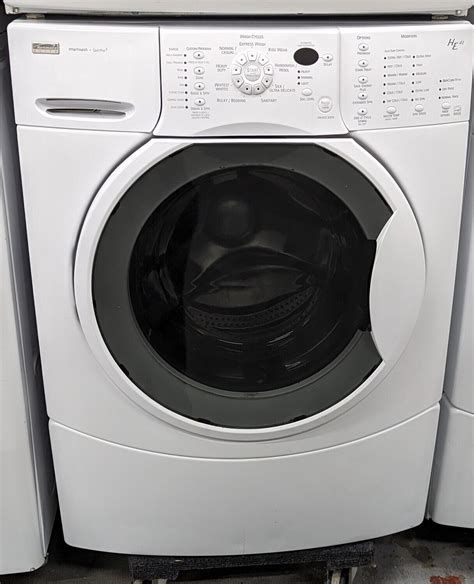

Kenmore Elite washing machines represent Sears' flagship laundry line, featuring high-capacity stainless steel drums, advanced steam wash profiles, and direct-drive motor architectures. Because Kenmore operates as a private badge brand rather than a direct manufacturer, servicing, diagnosing, and maintaining these units requires an understanding of their true Original Equipment Manufacturer (OEM) origins. The vast majority of Kenmore Elite washers in active service were manufactured under contract by either LG Electronics or Whirlpool Corporation.

Decoding OEM Engineering: Model Prefix Identification

Determining the exact manufacturing partner is the foundational step in diagnosing structural faults, sourcing replacement components, or running electrical diagnostics. Sears embedded the manufacturer identification code directly into the model number located on the machine’s chassis rating plate (found inside the door frame on front-loaders, or beneath the lid rim on top-loaders).

The three digits preceding the decimal point in any Kenmore model number establish the underlying engineering platform:

• Prefix 796 (LG Electronics): Utilizes LG's Direct Drive motor technology, where the brushless DC stator is mounted directly to the rear of the outer tub. These units feature smart motion profiles, electronic hall-effect position sensors, and digital display error codes.
• Prefix 110 (Whirlpool Corporation): Built on Whirlpool's Vertical Modular Washer (VMW) or direct-drive top-load platforms. These units frequently employ belt-driven splutch mechanisms, shift actuators, and mechanical drive assemblies.
• Prefix 417 / 592 (Electrolux / Samsung): Found on select specialty, compact, or legacy laundry systems. Electrolux systems feature front-load cabinet designs with internal heating elements, while Samsung-derived models utilize unique dampening suspension shocks.

OEM Platform Feature & Structural Comparison

Advanced Fault Code Analysis and Remediation Procedures

Modern Kenmore Elite washing machines rely on real-time micro-controller telemetry to halt operations when operating parameters exceed safety margins. The troubleshooting protocols below cover the primary fault conditions encountered on both LG-derived and Whirlpool-derived machines.

LG-Built Kenmore Elite Models (796 Series)

OE Error: Drain Timed-Out Failure

The control module triggers an OE code when the water level sensor (pressure switch) fails to register an empty tub state within 10 minutes of drain pump activation.

1. Disconnect power and drain remaining water manually through the lower coin-trap drain hose.
2. Remove the lower front access panel and inspect the drain pump filter housing for physical obstructions such as coins, lint build-up, or small clothing items.
3. Inspect the drain hose for sharp kinks or internal blockages.
4. Measure the drain pump motor coil resistance using a multimeter set to the Ohms scale. A healthy pump motor typically displays a winding resistance between 15 and 30 ohms. An open circuit (infinite ohms) or short circuit requires pump replacement.

LE Error: Locked Rotor Drive Fault

An LE error signifies that the Inverter Control Board detects no rotation or erratic feedback from the direct-drive motor assembly while voltage is applied.

1. Check for mechanical binding by manually rotating the inner stainless steel drum. If the drum binds or makes a scraping noise, inspect for foreign objects lodged between the inner drum and outer tub.
2. Inspect the wire harness connector at the base of the stator coil assembly located at the rear of the tub. Vibration can loosen or chafe the hall-effect sensor harness.
3. Test the Rotor Position Sensor (Hall Effect Sensor). This dual-element sensor monitors motor speed and direction. Resistance between power and signal terminals must measure within 8 to 12 kilohms. Replacing a failed hall sensor resolves over 80% of LE code events without requiring motor stator replacement.

UE / uE Error: Unbalanced Load Detection

A lowercase "uE" indicates the machine is attempting an automated re-balancing routine by adding water and tumbling. An uppercase "UE" signifies a hard stop after three failed re-balance attempts.

1. Inspect the mechanical suspension. For top-loading units, examine the four corner suspension damper rods. Excessive tub bounce or offset resting height signals depleted spring dampening fluid, requiring a full 4-rod kit replacement.
2. For front-loading units, check the bottom shock absorbers and top counter-weight springs. Leaking fluid on a shock absorber body confirms mechanical failure.

Whirlpool-Built Kenmore Elite Models (110 Series)

F7 E1 / F7 E5: Shift Actuator and Speed Sensing Fault

These codes indicate that the main control board cannot verify motor speed changes or actuator position switching between the agitate and spin modes.

1. Inspect the optical sensor lens on the shift actuator mounted underneath the tub frame. Excess grease or belt dust blocking the optical eye prevents speed sensing.
2. Check the splutch assembly (drive pulley, cam ring, and engagement teeth). Worn plastic teeth prevent full gear engagement, triggering motor speed faults under load.
3. Verify drive belt tension. A stretched drive belt slips during high-torque acceleration, throwing drive timing parameters out of specification.

Component Safety Mandate Always disconnect the main electrical supply and isolate water inlet sources before executing high-voltage diagnostic procedures or removing structural panels. High-voltage capacitors on inverter control boards can store lethal charges for several minutes after power removal.

Mechanical Deep-Dive: Spider Arm Corrosion and Tub Bearing Restorations

Front-load Kenmore Elite units (specifically the 796 series) feature a stainless steel wash drum supported by a cast aluminum tri-spoke spider arm. This spider arm connects directly to the drive shaft, running through dual ball bearings seated within the rear outer tub shell.

[ Inner Wash Drum ] │ [ Tri-Spoke Spider Arm ] <--- Galvanic Corrosion Zone │ [ Stainless Shaft ] │ [ Inner Seal / Lip Seal ] <--- Deterioration allows water ingress │ [ High-Precision Bearings ] <--- Noise generation ("Jet Engine" sound)

The Mechanism of Galvanic Corrosion

When aluminum alloys come into contact with stainless steel in the presence of an electrolytic solution (water containing detergent salts, alkali builders, and hard water minerals), galvanic corrosion occurs. Over years of operational cycles, the aluminum spider arm oxidizes, forming brittle aluminum hydroxide expansion crusts.

This structural decay leads to two critical failure pathways:

1. Spider Arm Shaft Fractures: The arms weaken, leading to structural cracking. The inner drum loses rotational concentricity, causing the drum edge to rub against the rubber door boot seal during high-speed spinning.
2. Lip Seal Failure and Bearing Destruction: Corrosive particulate breaches the rubber lip seal that protects the rear inner and outer tub bearings. Once water penetrates the bearing race, lubricating grease washes away, resulting in rapid metal pitting and continuous grinding noises.

Mechanical Failure Symptoms Checklist

• Acoustic Signature: A deep, metallic roaring noise during the final spin phase that increases in volume proportionally with drum RPM.
• Drum Radial Play: Manually pushing upward on the top inner edge of the stainless drum yields visible movement relative to the outer plastic tub rim (exceeding 1/8 inch of play).
• Particulate Discharges: Grey or black metallic flake deposits appearing on laundered garments or trapped within the lower drain pump basket filter.

Rebuilding the rear assembly requires splitting the outer tub shell, pressing out the worn ball bearings, replacing the rubber shaft seal, and installing a corrosion-resistant coated spider bracket assembly.

Preventive Maintenance Framework for Maximum Lifecycle Longevity

Extending the operational lifespan of a Kenmore Elite washing machine requires minimizing chemical accumulation, reducing mechanical shock loads, and maintaining proper seals.

Daily / Weekly ├── Wipe Door Boot Seal Bellows └── Leave Door Ajar Post-Wash Monthly Protocols ├── Execute High-Temp Tub Clean Cycle └── Drain & Flush Lower Coin Trap Filter Semi-Annual Inspections ├── Check Inlet Valve Mesh Screens └── Inspect Stainless Braided Supply Hoses

Operational Best Practices

1. Detergent Dosing Discipline: High-Efficiency (HE) detergent contains non-sudsing agents designed for low-water washing. Limit detergent volume to 1 to 2 tablespoons per full load. Excess surfactant leaves a film layer across the outer tub, accelerating spider arm oxidation and black mold development.
2. Door Seal Bellows Cleaning: After the final laundry load, dry the interior folds of the rubber door gasket using a microfiber towel. Trapped moisture accelerates fungal growth and degrades door boot elasticity.
3. Monthly Descaling and Sanitary Clean: Run a dedicated tub cleaning cycle using an oxygenated tub cleaner or anhydrous citric acid descaler at maximum water temperature. This removes soap scum build-up from unreachable tub surfaces.
4. Water Inlet Filter Screening: Unscrew hot and cold supply lines annually to clean sediment from the fine wire mesh filters inside the inlet valve ports. Restricted flow causes extended fill cycles and potential water valve coil burnouts.

Diagnostic Decision Matrix: Repair vs. Replacement Analysis

Determining whether to repair or replace a Kenmore Elite washing machine depends on component severity, total equipment age, and projected repair costs relative to modern replacement units.

Frequently Asked Questions

Who manufactures Kenmore Elite washing machines?

Kenmore Elite washing machines are manufactured by major appliance OEM partners, primarily LG Electronics (identified by model number prefix 796) and Whirlpool Corporation (identified by model number prefix 110). Sears utilizes these contracting partnerships to badge products built on proven manufacturing platforms.

What causes an "LE" error code on a Kenmore Elite washer?

An LE code indicates a Motor Locked Rotor error, which occurs when the electronic control unit detects that the drive motor cannot rotate properly. Common causes include an overloaded wash drum, a loose or damaged motor wiring harness, or a failed Hall Effect sensor (Rotor Position Sensor) mounted on the drive stator.

How do I execute a hard system reset on a Kenmore Elite washer?

To perform a hard reset, disconnect the power cord from the wall outlet or trip the home circuit breaker for at least five minutes. While disconnected, press and hold the Power/Start button for five seconds to drain residual charge from the circuit board capacitors, then reconnect power and select a standard drain/spin cycle.

Why does my washer make a loud roaring noise during high-speed spinning?

A loud, jet-engine-like roaring noise during the spin cycle indicates that the rear outer tub drum bearings have failed due to water ingress. Water breaches the internal rubber lip seal, washing away structural grease and causing the steel ball bearings to pit, rust, and grind during operation.

Are replacement parts still available for Kenmore Elite laundry appliances?

Yes, replacement components remain widely accessible across appliance part distribution networks. Because Kenmore Elite machines share core internal mechanisms with standard LG and Whirlpool models, motor components, pumps, valves, and electronic control boards remain fully supported using cross-referenced OEM part numbers.

Technical Service and Next Steps

When servicing a Kenmore Elite washing machine, always cross-reference component part numbers using the full model number listed on the chassis badge (including the specific prefix and suffix digits). For complex electronic repairs, verify voltage supply stability using an accurate digital multimeter before replacing printed circuit boards. If structural tub failures or severe galvanic corrosion are confirmed, perform a rigorous cost-benefit assessment comparing component overhaul costs against current high-efficiency replacement units.
